304 and 316L stainless · from one piece

Stainless enclosures with your cutouts.

Keep a standard body and change the openings, or specify a custom size. Send the drawing you have; we check the material, space and cutouts and quote the work before anything is cut.

Send a drawing for a quote Choose a standard body

Made to order. Delivered in 10 business days, anywhere in the world. Counted from your order; for custom work, from your approval of the drawing.

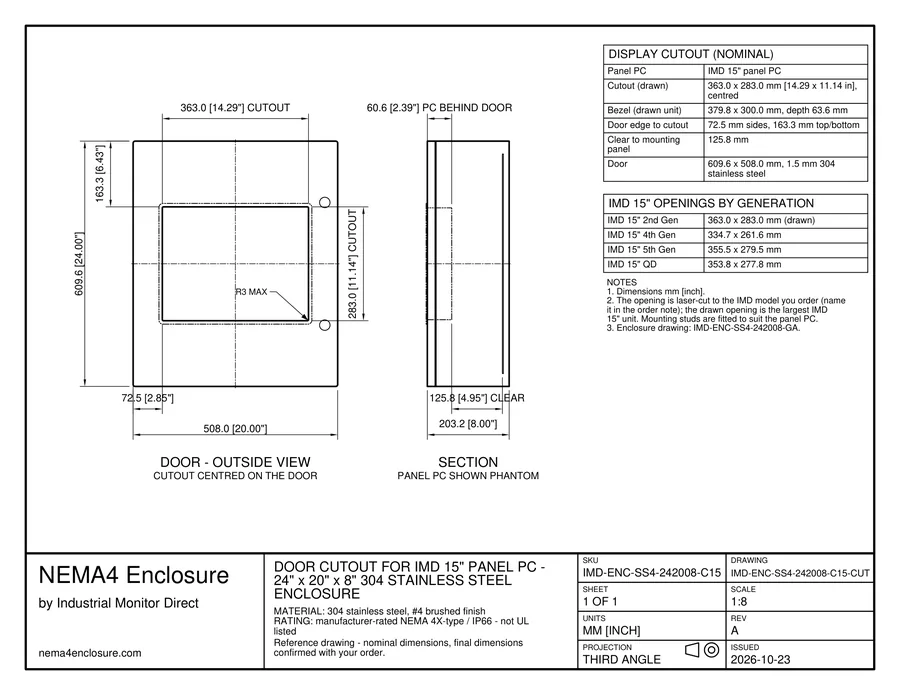

Sample approval drawing: dimensioned door cutout for the 24 × 20 × 8 in 304 stainless enclosure — What you approve before anything is cut: the published door-cutout drawing for the 24 × 20 × 8 in 304 enclosure. What the drawing shows

Choose the starting point

A different hole does not always need a different box.

A standard body, modified

If the components, wiring and door-mounted devices fit one of our standard sizes, start there. Place cable entries, operators, connectors or a display opening on the required face in the cutout designer.

Check the usable space first

A custom body and openings

If a standard body cannot meet the space or mounting requirements, define the outside size and material in the enclosure builder, or attach your own drawing to the quote form. Include the required inside clearance as well.

Start a custom stainless build

Examples from the catalog

A standard body in the grade you need.

These are starting bodies, not a fit recommendation. Each product page shows its inside dimensions, mounting panel, usable depth and reference CAD. Use its “Design your cutouts” link to carry that exact body into the designer.

All 304 wall-mount sizes All 316L wall-mount sizes

A quote that matches the job

What to put on the drawing.

Body and material. Outside height × width × depth, units, 304 or 316L, and the inside space the equipment needs.
Each opening. Face, size, corner radius and location from a named datum; identify holes, studs, glands, windows and operator devices separately.
The installed device. Exact model and its mechanical drawing, required panel thickness, mounting method, rear depth and connector clearance.
The site. Indoors or outdoors, washdown method, chemicals, required rating or listing, mounting arrangement, quantity, destination and required date.

PDF, DXF, DWG and STEP are accepted by the quote form. A photo of a marked sketch is enough to start the discussion. The approval drawing resolves the final dimensions before cutting.

Cutout and cable-entry design guide

Online configuration or a drawing-based quote?

What you need	How to proceed	What gets checked
A listed standard configuration	Choose the options on its product page. Prices load live from Shopify.	The exact IMD device model when a display cutout is selected.
Your own holes or device opening	Use the cutout designer or send your drawing for a quote.	Cutout position, mounting, seals and rear clearance on the approval drawing.
Another body size or mounting arrangement	Use the enclosure builder or send your specification for a quote.	Outside and inside size, material, mounting and the required rating.

Before you specify the cutouts

Can I order a single stainless enclosure with my own holes?

Yes. Custom work starts from one piece. Send the body size, stainless grade and a dimensioned drawing, or place your openings in the cutout designer. We check the request and quote it by email.

Does a new cutout automatically keep the enclosure rating?

No. Our standard wall-mount enclosures are rated NEMA 4X / IP66 by the manufacturer; not UL listed. The finished assembly depends on suitable components, seals and cable glands in every opening. Tell us the required rating and cleaning conditions so the proposed design can be reviewed.

What dimensions should my cutout drawing include?

Name the face, opening width and height or diameter, corner radius, and position from a stated edge or datum. Include the device model, panel-thickness limits, mounting holes or studs, depth behind the opening and space needed for connectors and cables. A screen diagonal alone is not a cutout specification.

When does delivery time start for a modified enclosure?

For quoted custom work, the 10-business-day delivery period starts from your approval of the quoted drawing. The quote identifies the size, material, openings and delivery requirements before you order.

Have a drawing? Start with that.

Send the size, grade, openings, quantity and destination. An engineer replies by email with questions or a formal quote and a drawing to approve.

Request a stainless enclosure quote
